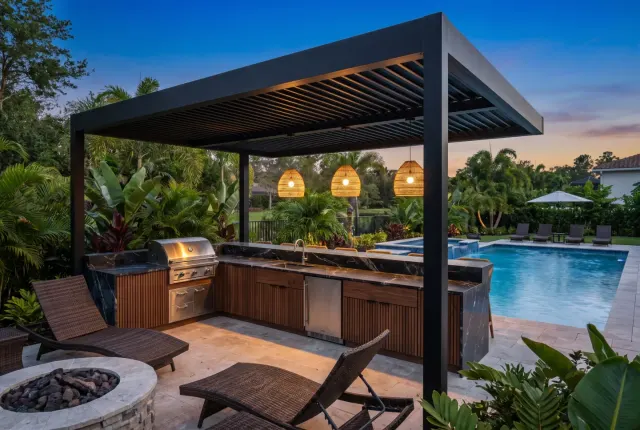

R1 · 150BCLOUVEREDOPEN. ANGLE. CLOSE.
- POST / BEAM
- 150 × 150 · 150 × 200 MM
- LAMELLA
- ALUMINUM OR GLASS
STRUCTURE

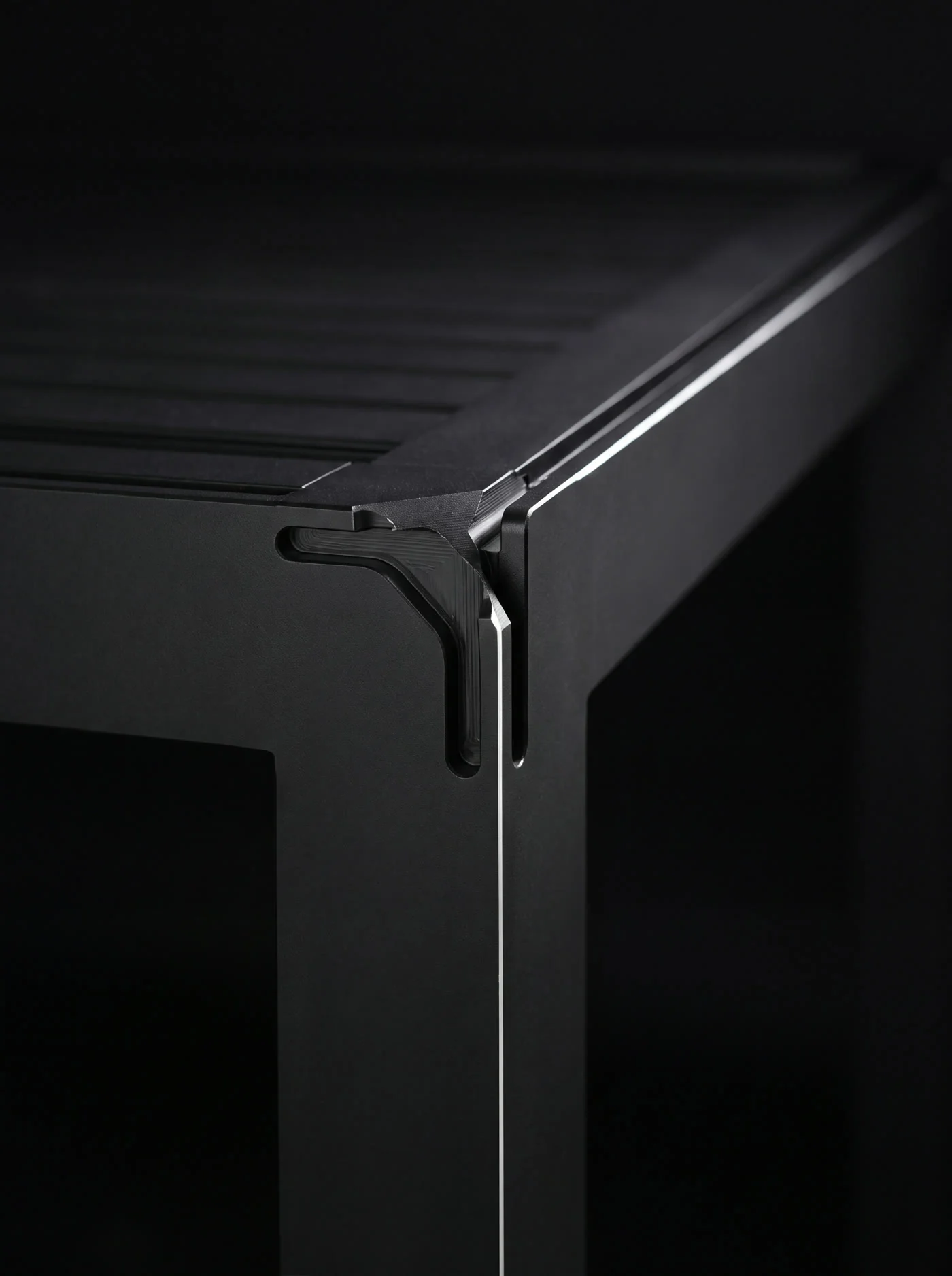

The frame is two clean lines
The post is two parts: the structure, and a cover that snaps over it. Wiring, fixings and screws live inside — so what you see is an unbroken 150 × 150 line from the ground to the beam.
- POST
- 0
- BEAM
- 0
TECHNICAL DATA — STRUCTURE
| POST BUILD | STRUCTURAL PROFILE 150BC-101 + SNAP COVER 150BC-102 |
|---|---|
| POST SECTION | 150 × 150 MM ASSEMBLED |
| CARRIER BEAM | 150BC-401 · 150 WIDE × 200 HIGH |
| TWIN-BAY SPANS | SPLIT BEAM SET 411 + 413 + 411 · SAME 200 MM FACE |
| SIDE FASCIA | 150BC-403 · 135.3 MM WIDE |

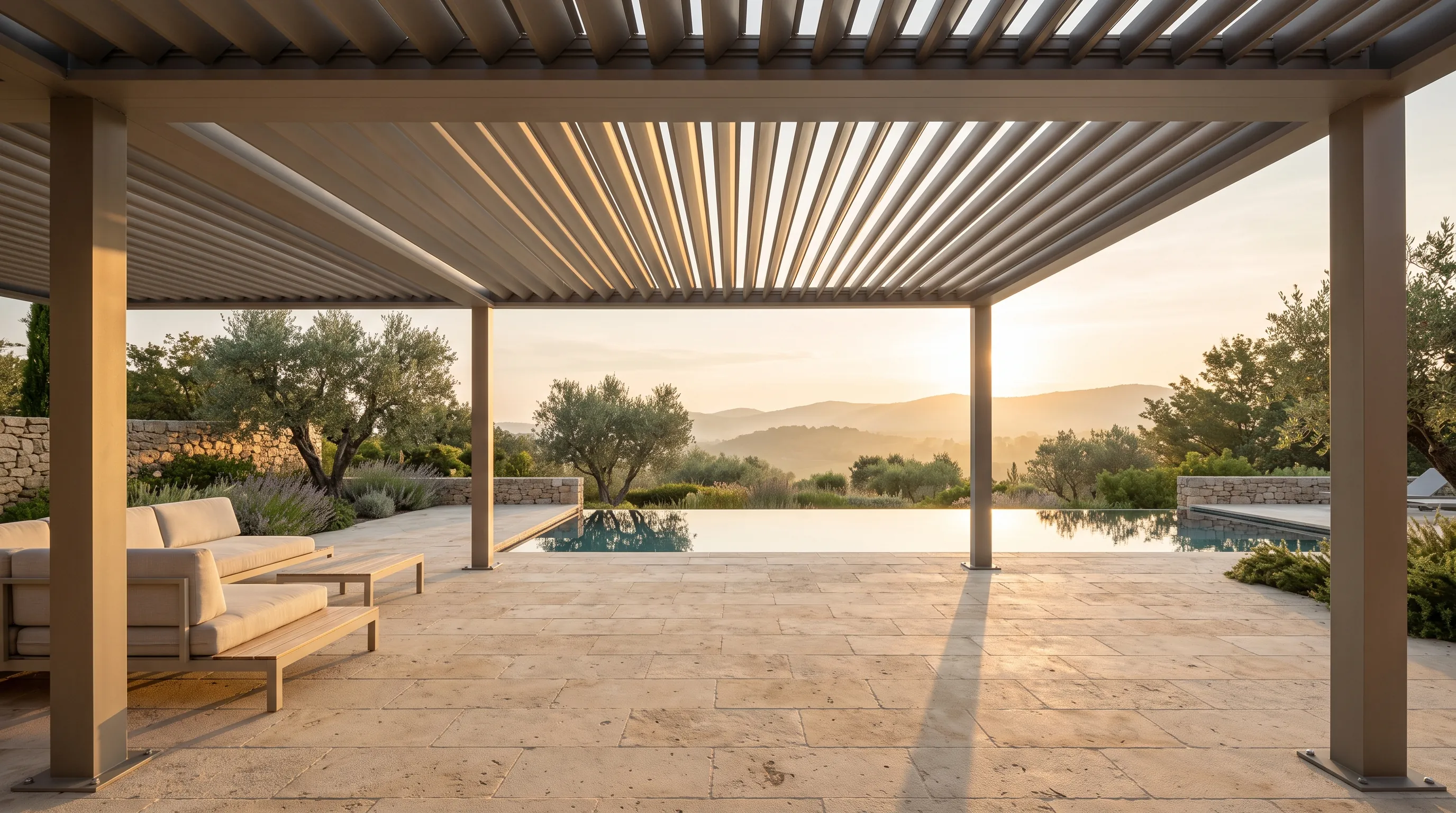

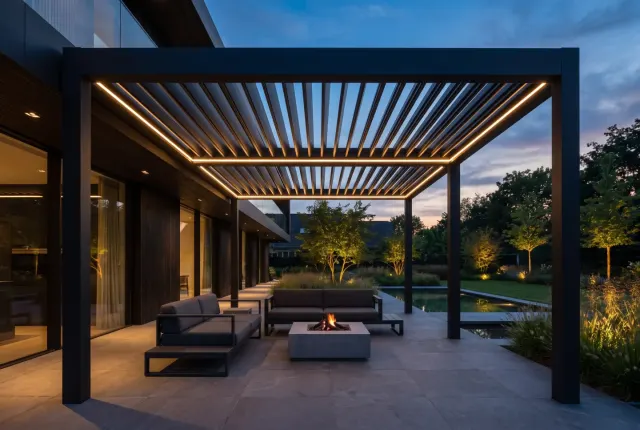

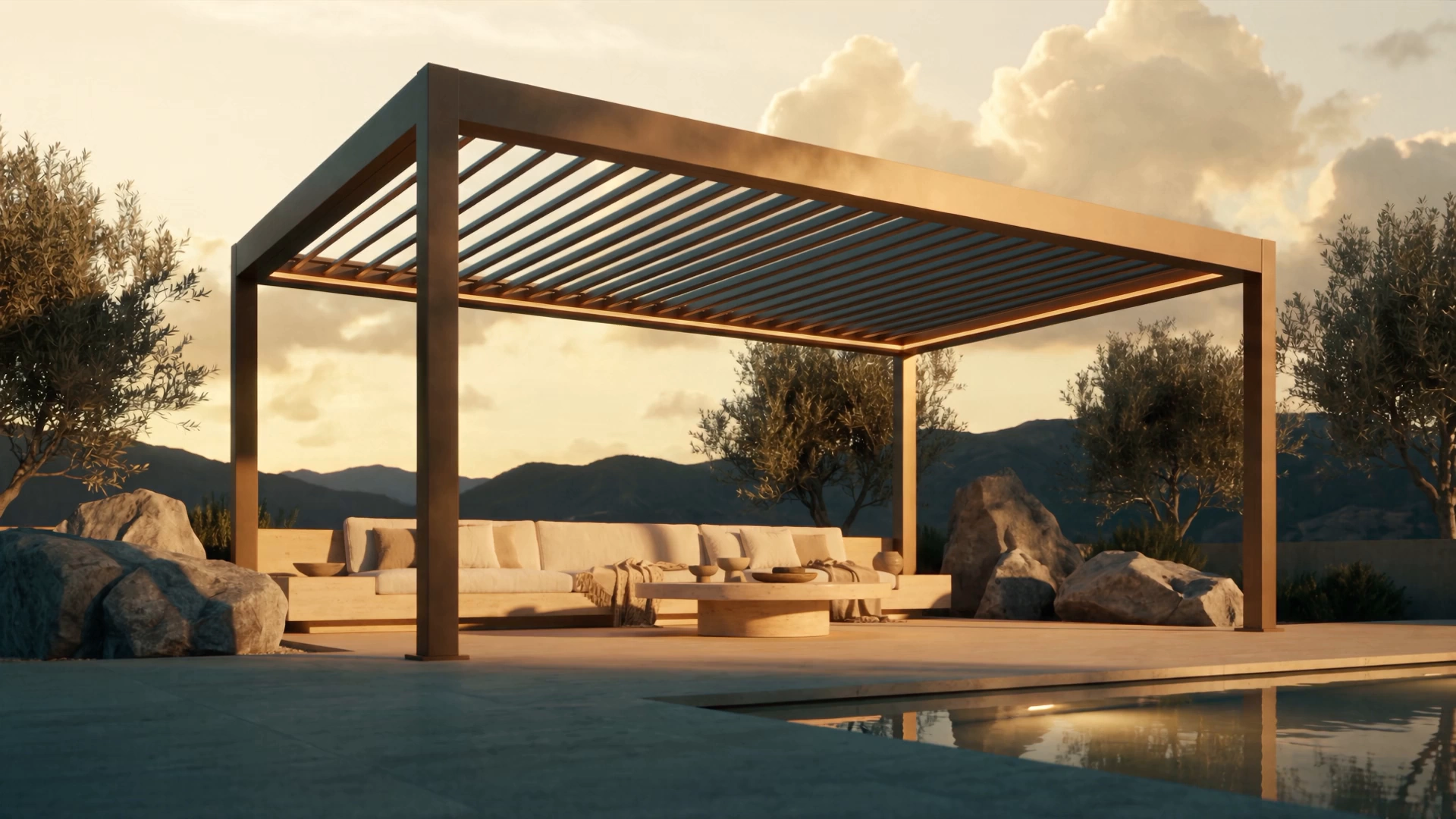

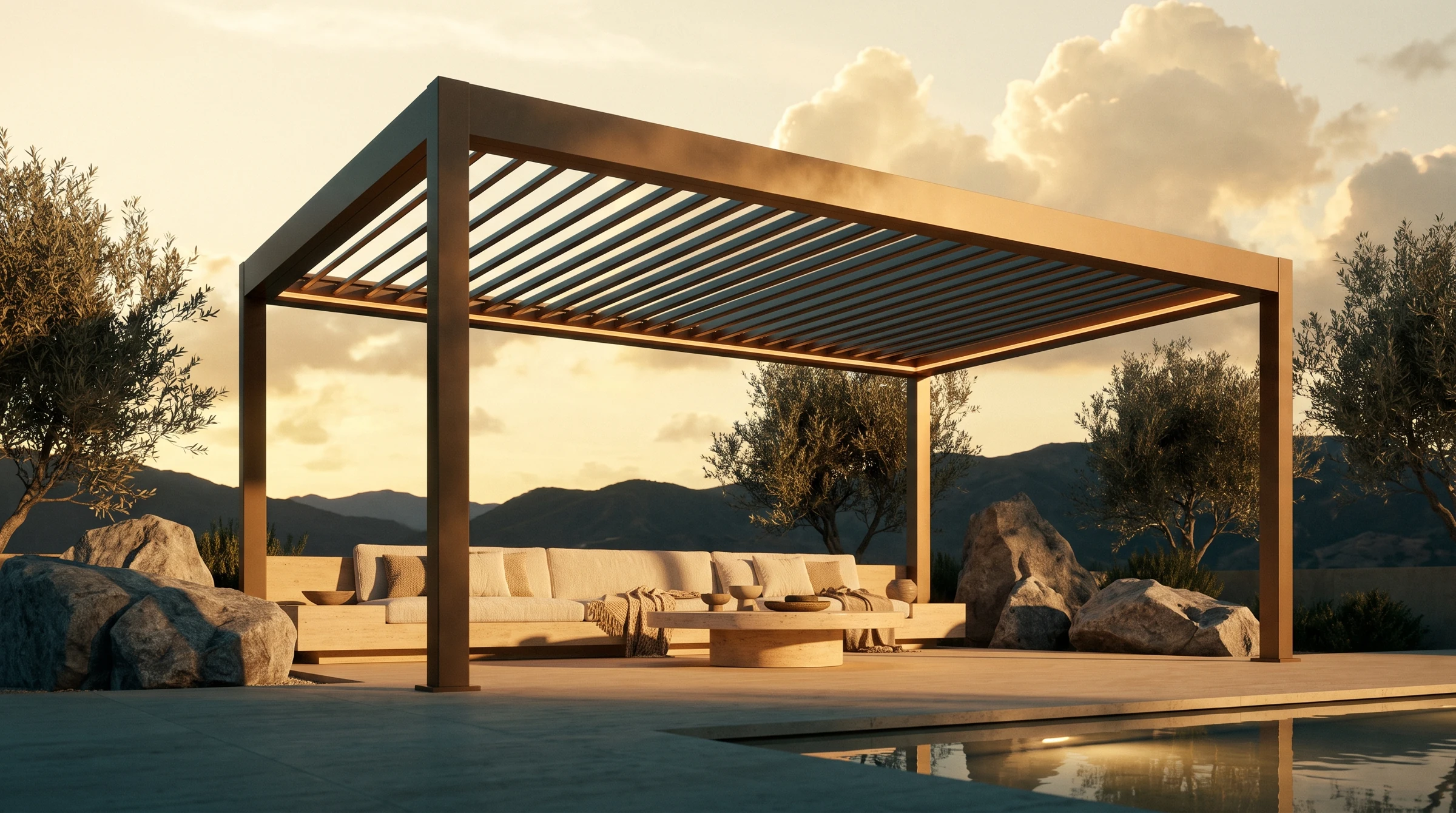

THE ROOF

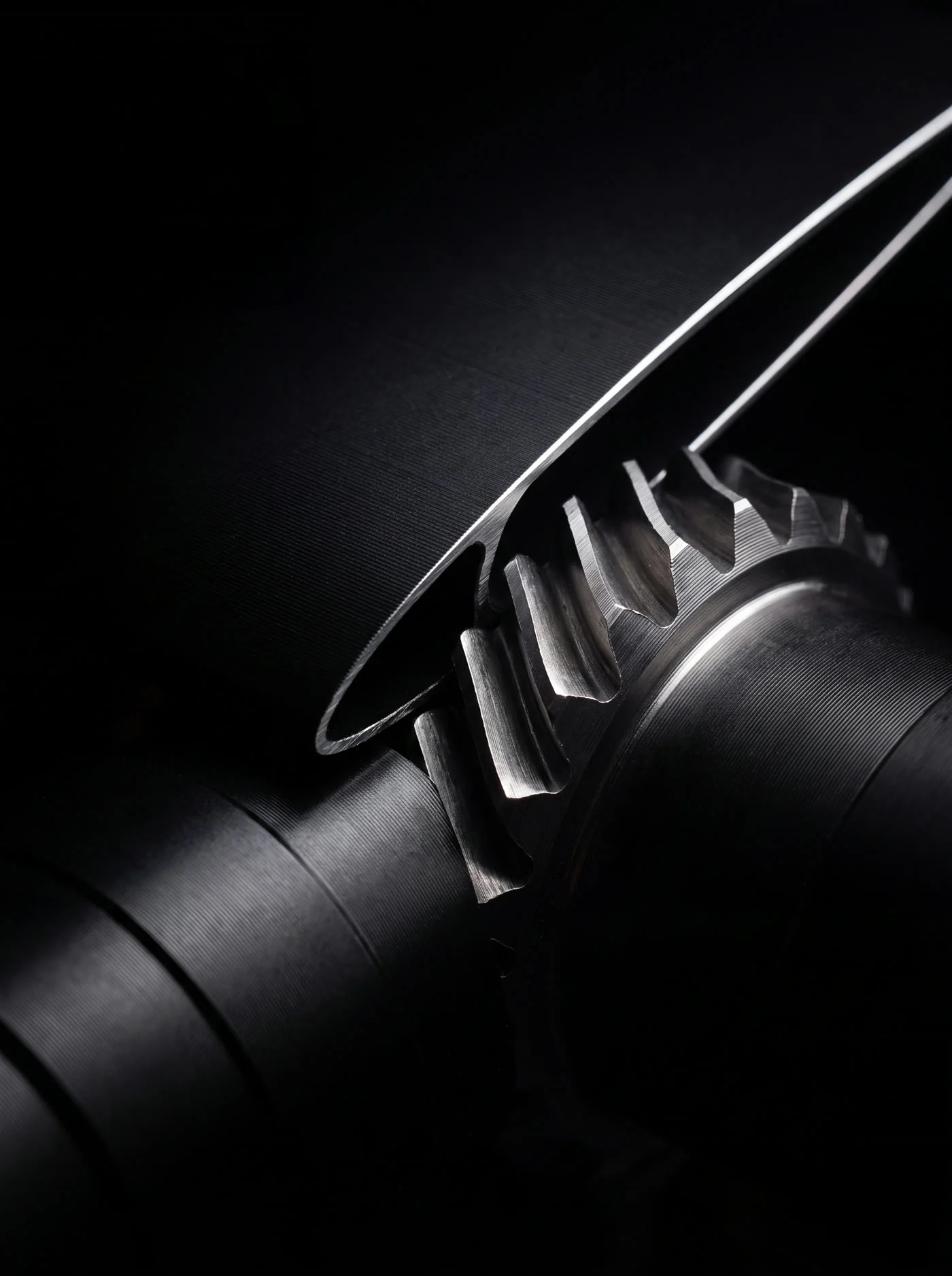

Louvers that open, close, and let light through

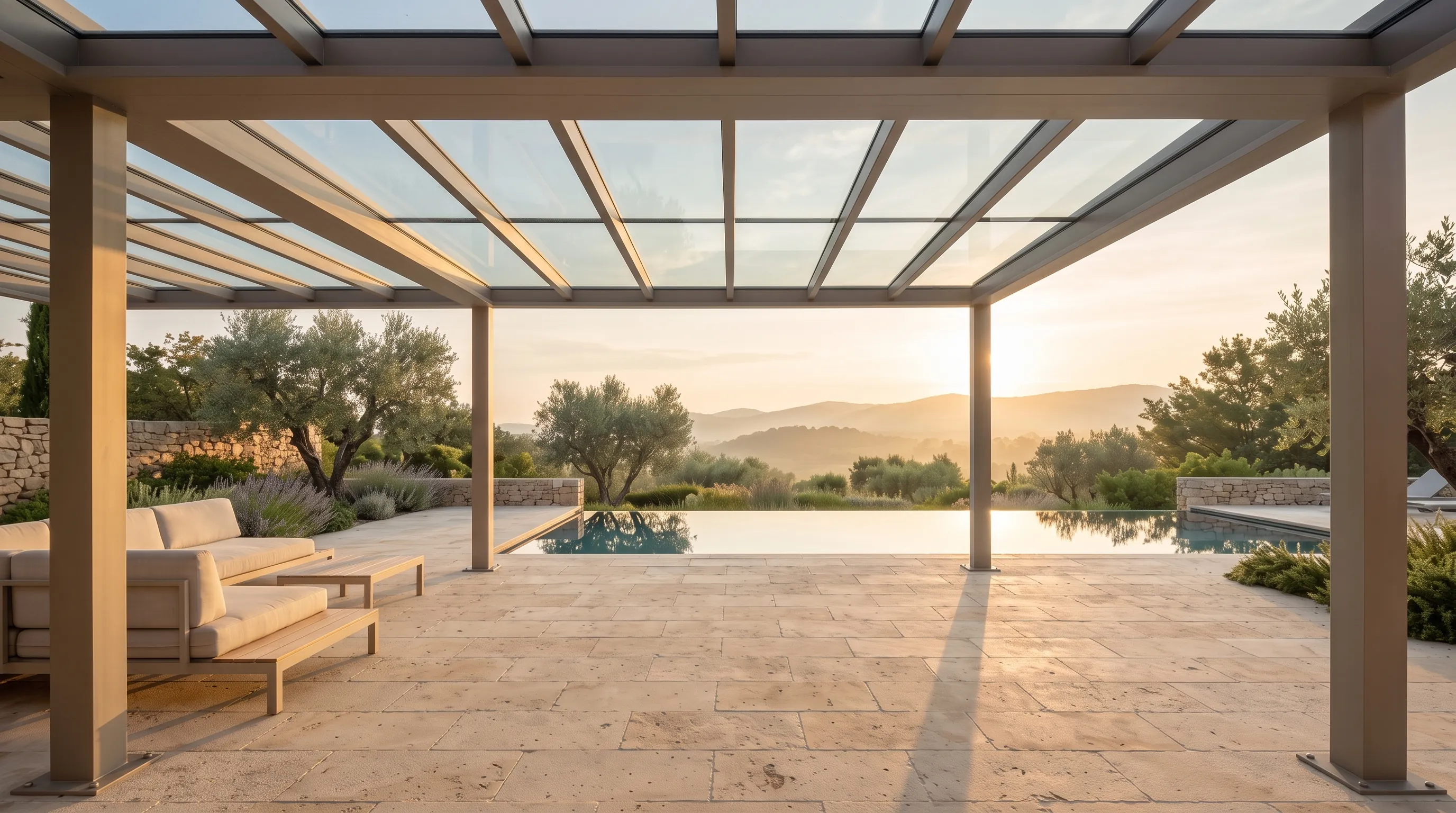

The roof is a field of 250 mm aluminum blades that pivot by motor — open sky, angled shade, or sealed flat. Swap any run of blades for glass ones and the roof keeps working, but the daylight comes through.
- BLADE
- 0
- BLADE OPTIONS
- ALUMINUM · GLASS
TECHNICAL DATA — ROOF
| ALUMINUM BLADE | 150BC-201 · 250 MM WIDE AT 250 MM PITCH |
|---|---|
| GLASS BLADE SET | EDGE 150BC-211 · CARRIER 150BC-212 · H-CONNECTOR 150BC-213 |
| ROOF BUILDS | ALUMINUM · GLASS · COMBINATION |
| SAME PROFILE FAMILY | ROLLING ROOF VARIANT |
MOTOR + RAIN
It runs itself and drains itself

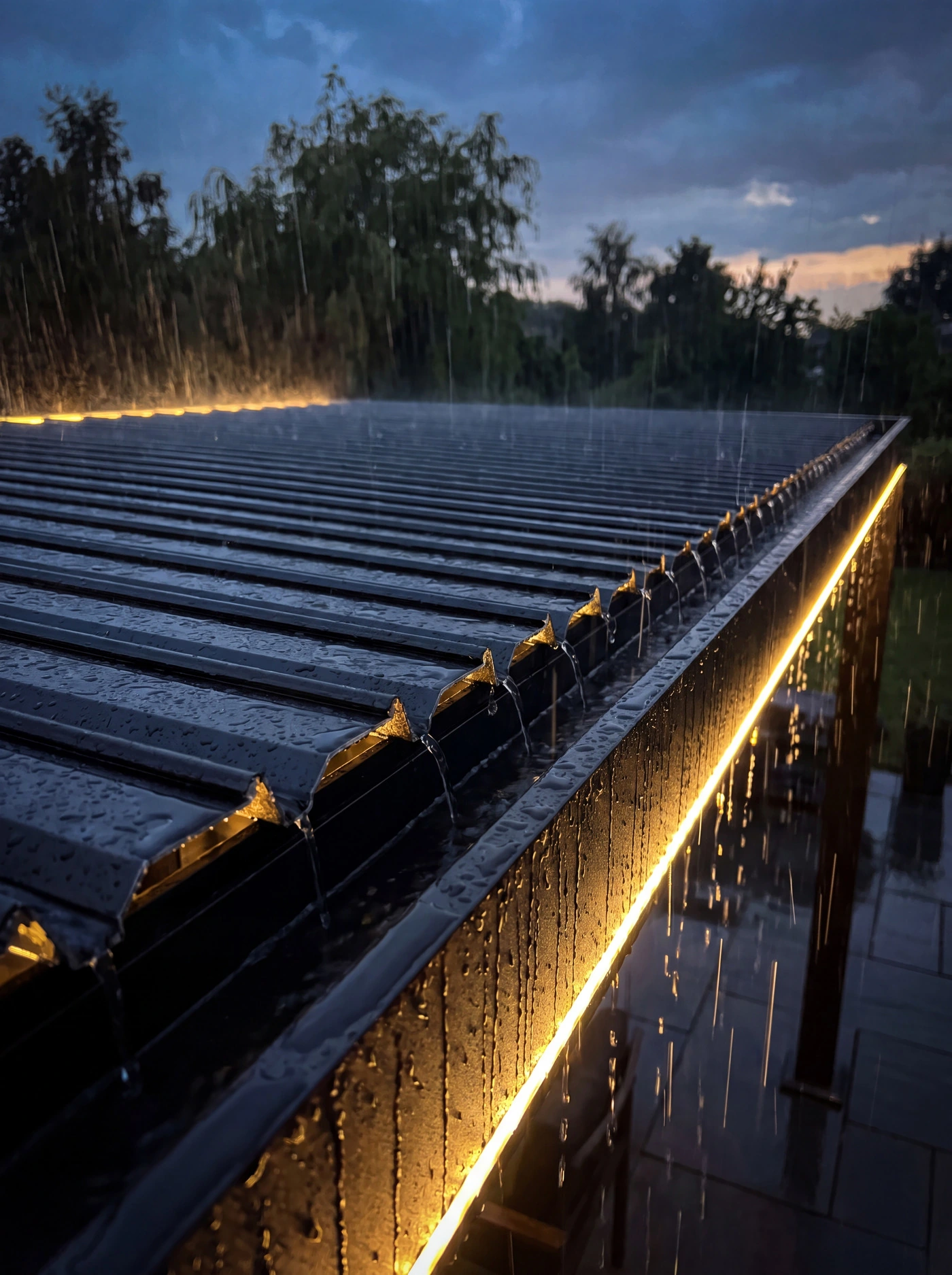

The motor is built into the frame — you never see it. When it rains, the closed roof sheds water into a gutter hidden inside the perimeter, down through the posts. No drips off the edge, no pipes on show.
- MOTOR
- CONCEALED IN FRAME
- DRAINAGE
- INSIDE THE PERIMETER
TECHNICAL DATA — DRIVE + WATER
| DRIVE | CARRIAGE ON 150BC-501 RAILS OVER THE CARRIER BEAM |
|---|---|
| MOTOR | TUBULAR, INSIDE THE PERIMETER GUTTER BOX |
| GUTTER | 152.5 MM WIDE PERIMETER ASSEMBLY |
| SEALING | SLOPED INNER GUTTER (150BC-303) |
ANCHORAGE
It stands like a building

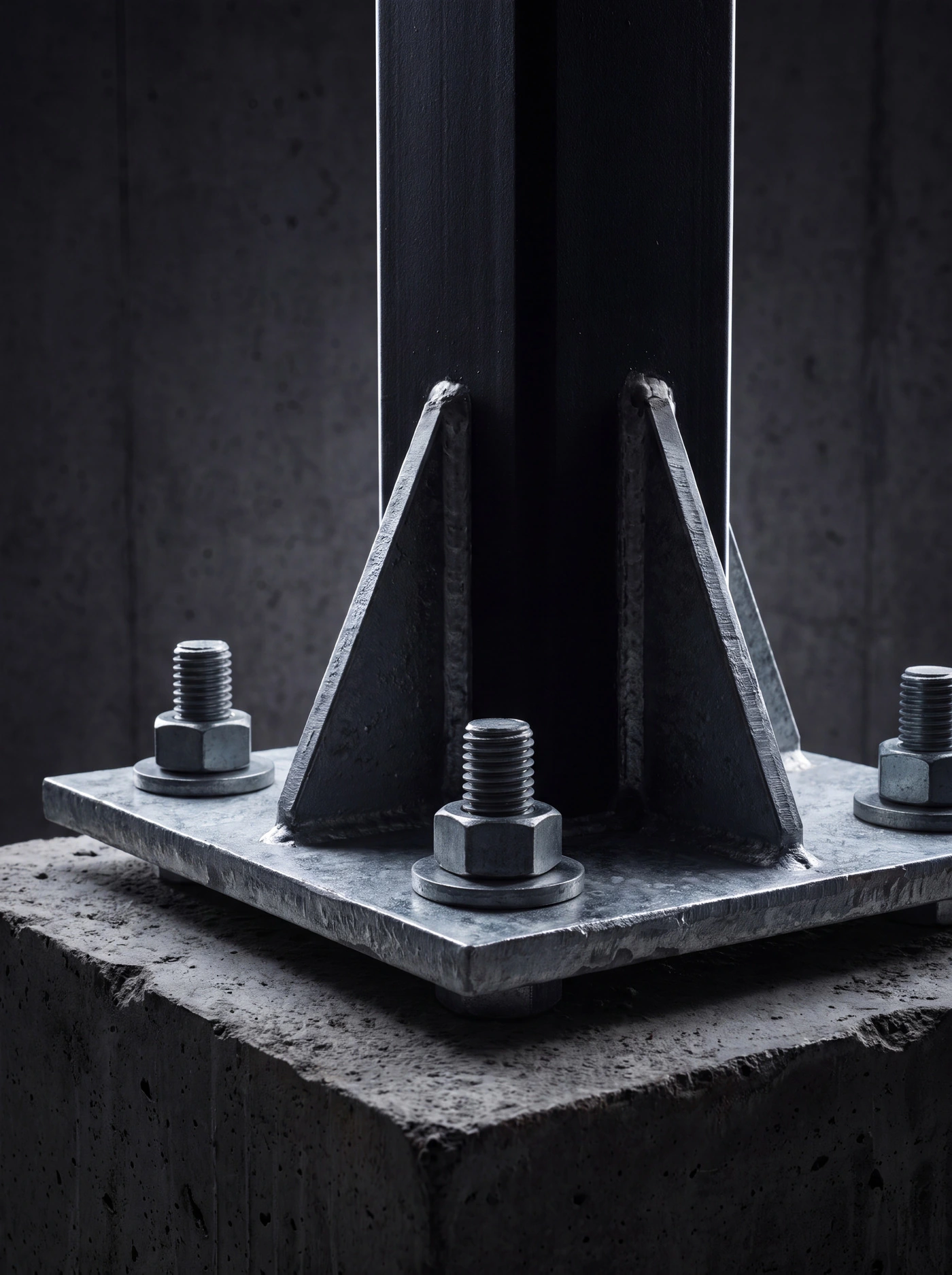

Under every post, the same documented detail in six components — drawn here as you scroll. Final dimensions by a licensed Professional Engineer for your site's wind and ground.
- 1Concrete footingREINFORCED · ACI 318 · MIN 4,000 PSI
- 2Base plate1″ ASTM A36 · HOT-DIP GALVANIZED
- 3Anchor bolts(4) Ø1″ F1554 GR.55 · 12″ MIN EMBEDMENT
- 4Nuts + washersASTM A563 HEAVY HEX · HARDENED
- 5Stiffener plates3/8″ A36 GUSSETS, WELDED
- 6Steel column8″ × 8″ × 1/4″ ASTM A500 GR.C
WELDING AWS D1.1 · DESIGN AISC 360 · GALVANIZING ASTM A123 · PE SIGN-OFF PER SITE
